316SS U-Bolt

316SS U-Bolt

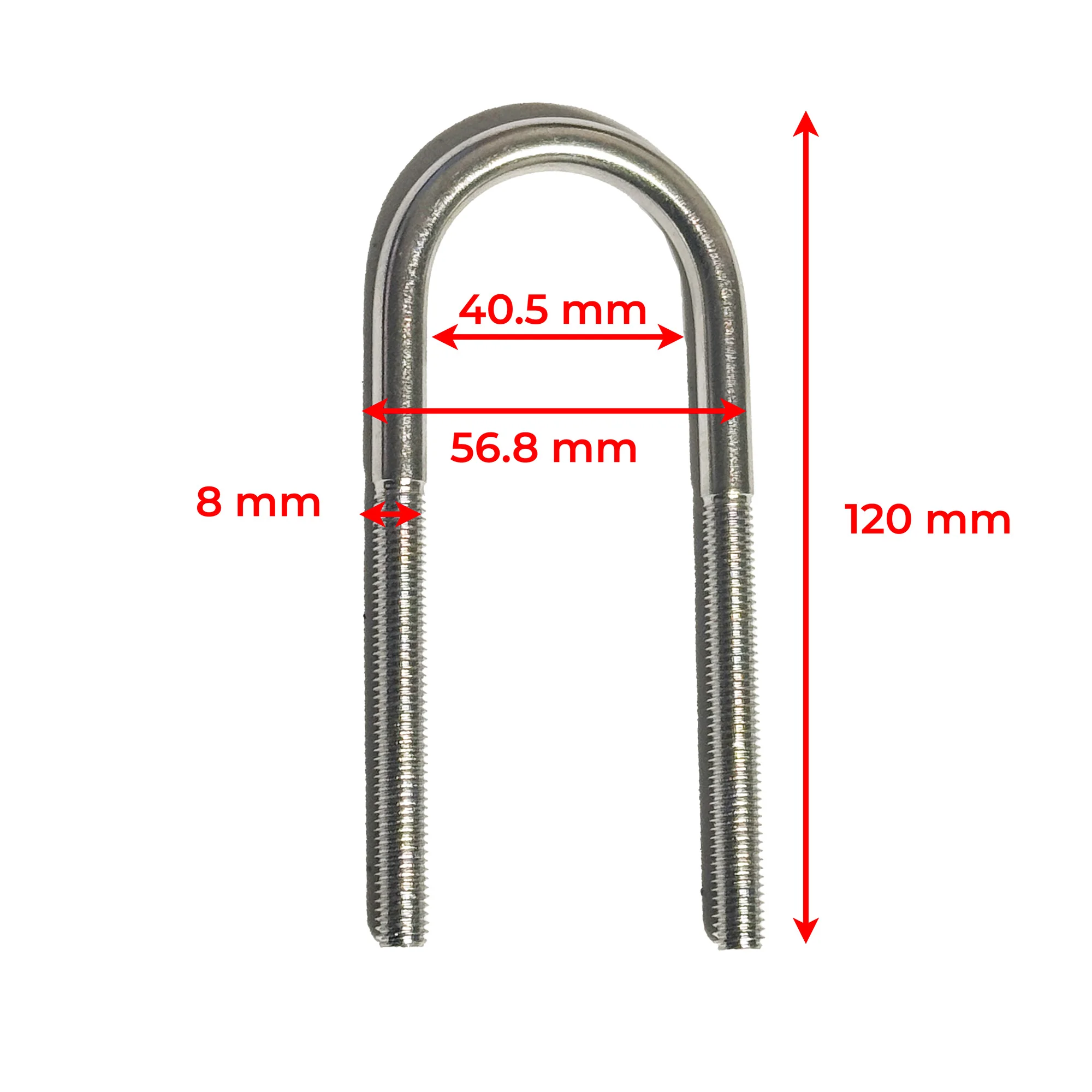

Climbing Taiwan had a small batch of U bolts (staples) manufactured. They are a niche style of glue in anchor nowadays. They are a good option if theft of anchor hardware is a possibility or if tensile-loading is primarily expected.

Specifications:Ā

  • 316 stainless steel 8mm rod
  • Rated to 30kN
  • 92g
  • Requires 10mm holes
  • Minimum 80mm embedment
  • Has rolled threads and is passivated for extra corrosion resistance.

Climbing Taiwan's test results with Hilti RE100 Epoxy:

  • Tension: 67.34kN
  • Shear: 69.78kN
$7.20

Original: $24.00

-70%
316SS U-Bolt—

$24.00

$7.20

Product Information

Shipping & Returns

Description

Climbing Taiwan had a small batch of U bolts (staples) manufactured. They are a niche style of glue in anchor nowadays. They are a good option if theft of anchor hardware is a possibility or if tensile-loading is primarily expected.

Specifications:Ā

  • 316 stainless steel 8mm rod
  • Rated to 30kN
  • 92g
  • Requires 10mm holes
  • Minimum 80mm embedment
  • Has rolled threads and is passivated for extra corrosion resistance.

Climbing Taiwan's test results with Hilti RE100 Epoxy:

  • Tension: 67.34kN
  • Shear: 69.78kN
